Product Description:

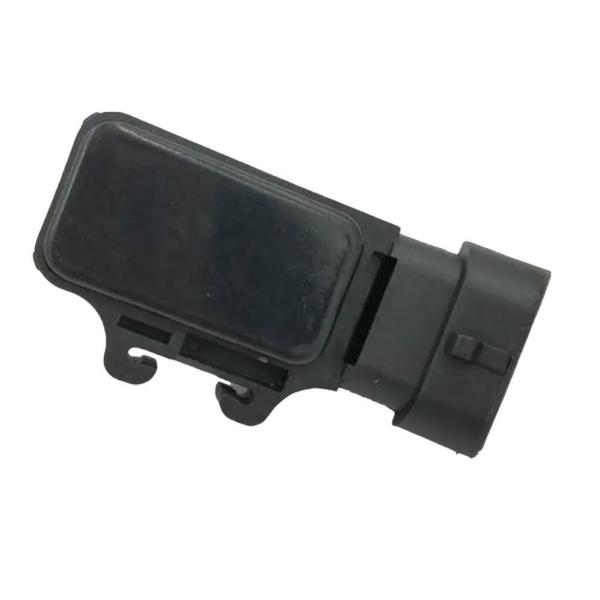

A Manifold Absolute Pressure (MAP) Sensor is used to measure the intake manifold pressure, usually found near the throttle body or on the inlet manifold. The sensor provides the Engine Control Unit (ECU) with intake manifold pressure readings, helping the ECU to assess air density, compute the air-fuel mixture, determine engine load, manage fuel injection cadence and control ignition timing. Besides the aforementioned uses, a MAP Sensor makes for excellent diagnostic tool in certain cases, such as when used to inspect for a vacuum leak in the intake manifold or to - when used together with other sensors - detect a failing EGR valve.

Failure of MAP Sensors could be attributed to various causes such as contamination, obstruction, damage done by heat or vibration. Signs of a worn out MAP Sensor could be starting problems, knocking sounds, excessive fuel consumption, low engine power or the activation of the Check Engine Light.

Features:

• Product Name: MAP pressure sensor
• Boost Pressure Sensor, Absolute Pressure Sensor, Manifold Absolute Pressure Sensor
• Pressure Connection: G1/4
• Operating Voltage: 5V
• Warranty: 1 Year
• Measuring Range: 0-1.2MPa
• Cable Length: 1m

Technical Parameters:

Applications:

Oetex's MAP pressure sensor is a must-have for any atmospheric pressure measurement or monitoring application. It features an ultra-low response time of ≤1ms, a temperature range of -40℃~125℃, and a 1m cable length. This pressure sensor is designed to handle high and low pressure measurements with its 5V operating voltage and voltage output signal. It offers reliable and accurate pressure measurement and monitoring in a wide variety of applications, ranging from automotive to medical industries.

The MAP pressure sensor from Oetex is a highly versatile solution for any atmospheric pressure measurement or monitoring. It is capable of measuring and monitoring high and low pressure with its 5V operating voltage and voltage output signal. It also features an ultra-low response time of ≤1ms, a temperature range of -40℃~125℃ and a 1m cable length. It offers a reliable and accurate pressure measurement and monitoring solution for a variety of applications including automotive, medical, aerospace, and industrial.

Oetex's MAP pressure sensor is a reliable and accurate pressure measurement device that is ideal for a wide range of applications. It features an ultra-low response time of ≤1ms, a temperature range of -40℃~125℃, and a 1m cable length. This pressure sensor is designed to handle high and low pressure measurements with its 5V operating voltage and voltage output signal. It is suitable for any atmospheric pressure measurement or monitoring application, such as automotive, medical, aerospace, and industrial.

Customization:

Oetex MAP Pressure Sensor is designed for barometric, atmospheric and differential pressure measurement with a measuring range from 0-1.2MPa. This reliable and durable device is made of stainless steel housing and comes in a size of 30mm*30mm*50mm. It is supported by a 1-year warranty.

• Brand Name: Oetex
• Warranty: 1 Year
• Dimensions: 30mm*30mm*50mm
• Housing Material: Stainless Steel
• Product Name: MAP Pressure Sensor
• Measuring Range: 0-1.2MPa

Order your custom-made Oetex MAP Pressure Sensor now and get the best barometric, atmospheric and differential pressure measurement solution for your application!

Support and Services:

MAP pressure sensor offers technical support and services to our customers. Our team of experienced engineers and technicians are available to help you select the right MAP pressure sensor and answer any questions you may have about its installation and setup. We also provide lifetime technical support and services for all of our products, ensuring that your MAP pressure sensor will always perform at its best.

If you need help troubleshooting or would like to discuss any of our MAP pressure sensor’s features and capabilities, please don’t hesitate to contact us. Our technical support team is available 24/7 to provide you with the best service possible.

Packing and Shipping:

MAP pressure sensor Packaging and Shipping:

• The MAP pressure sensor is securely packaged to minimize potential damage during shipping.
• The product is shipped in a well-labeled package, and includes any necessary instructions and documentation.
• Tracking information is provided to customers to ensure order accuracy and timely delivery.
• The MAP pressure sensor is shipped from a warehouse or supplier located in its country of origin.
